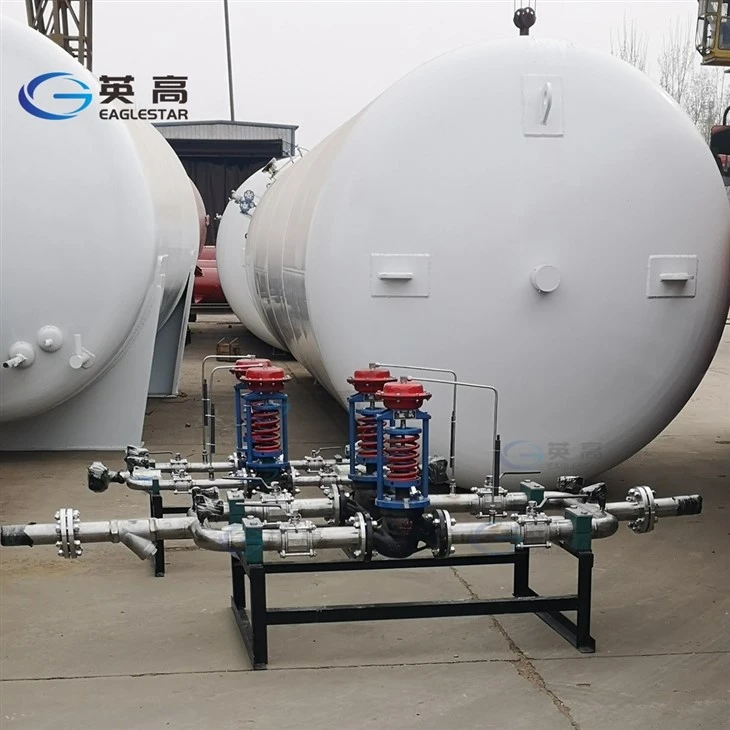

Roj LPG chaw nres tsheb



Vim li cas thiaj xaiv Eaglestar Gas LPG chaw nres tsheb nres?



EastarRoj LPG chaw nres tsheb yog tsim nrog cov nta uas pRioritize efficiency, kev nyab xeeb, thiab yooj yim ntawm kev ua haujlwm. Txawm hais tias koj tab tom teeb tsa lub chaw nres tsheb roj tshiab lossis kho qhov system uas twb muaj lawm, lub kaw lus no muab kev ntseeg siab thiab raug nqi} txoj kev ua tau zoo tshaj plaws.



• Tsis zoo lifilling

Ib qho ntawm cov ntsiab lus standout ntawm LPG chaw nres tsheb yog nws tsis siv neeg sau thiab kaw kaw. Qhov kev ntse no ua rau cov haujlwm ua haujlwm tsis zoo los ntawm kev hloov kho tus kab mob LPG, tiv thaiv kev ua haujlwm ib zaug thaum cov txheej txheem roj ua tiav. Cov yam ntxwv no tsis yog tsuas yog nce kev ua haujlwm tau zoo tab sis kuj tseem txo qis kev pheej hmoo ntawm cov xwm txheej lossis tib neeg yuam kev.



• Txuag LPG Separator

Cov chaw nres tsheb tau nruab nrog cov roj sib cais ua kom muaj txiaj ntsig roj thiab kua theem, ua kom muaj cov kua ntshiab ntawm cov kua hluav taws xob. Cov kab ke no ua lub luag haujlwm tseem ceeb hauv kev saib xyuas kev ncaj ncees thiab raug ntawm tus txheej txheem sam roj los, txo qis kev pov tseg thiab txhim kho cov kev ua tau zoo tag nrho ntawm cov chaw nres tsheb.



• Cov ntaub ntawv tiv thaiv thiab cov suab nrov txo

Peb to taub qhov tseem ceeb ntawm cov ntaub ntawv tiv thaiv hauv kev ua haujlwm roj. Peb cov chaw nres tsheb LPG puv tau nruab nrog cov tshuab kev nyab xeeb uas tiv thaiv koj cov ntaub ntawv kev sib pauv thiab cov haujlwm ua haujlwm los ntawm kev tsis tau tso cai, kom paub tsis raug cai thiab kev ncaj ncees.



Ib qho ntxiv, nws ua haujlwm nrog lub suab tsawg, muab cov chaw ua haujlwm ntsiag to rau cov neeg ua haujlwm thiab txo kev ntxhov siab hauv cov chaw ib puag ncig.



• Yig thiab yooj yim rau nruab

Tsim nrog tus nqi - kev ua tau zoo hauv siab, lub chaw nres tsheb muaj ntev- tsis tau txais cov nqi ua haujlwm tsawg. Lub kaw lus kev teeb tsa thiab cov khoom siv kev teeb tsa thiab cov khoom siv kev tsim kho tau tso cai rau kev siv tau yooj yim, txo lub sijhawm ua haujlwm thiab cov nqi npaj ntawm tus xaib.



• Kev pab txhawb nqa thiab kev tshaj lij tom qab {{0} Kev pabcuam muag muag

Ehalvestar muab phau ntawv qhia ntxaws thiab kev ua haujlwm los xyuas kom muaj kev teeb tsa du thiab ua haujlwm ntawm LPG chaw nres tsheb. Peb tseem tau hais txog txhua qhov kev ceev faj tseem ceeb kom thiaj xav txog ua ntej lub tsev nres tsheb, muab cov ntaub ntawv qhia meej los ntawm kev pib ua tiav.



Nrog rau cov pab pawg txhawb pab kev txhawb nqa, peb ua kom muaj kev txhawj xeeb {}} {1} {1} {1}- Txoj Kev Muag Khoom, yuav pab koj daws cov teeb meem uas yuav tshwm sim thaum lub sijhawm nres tsheb. Peb cov kws tshaj lij txhua tus yog ib txwm npaj los pab koj, ua kom koj cov chaw nres tsheb khiav haujlwm tau los.



Kev Qhia Tshwj Xeeb



Voltage: 220V, 50-60Hz	Kev ntsuas chav ntsuas: litre lossis kg (yeem)
Flow tus nqi: 5-50L / min	Siv tau nruab nrab: Roj li roj av
Qhov tseeb: ± 0.5%	Suab nrov: tsawg dua los yog sib npaug rau 80db (a)
Tus lej rau kev muag khoom: 0-99999.00 Cov Nyiaj Txiag Chav	Cua Siab: 86} ~ 106kpa
Cov lej ntawm cov ntim: 0-9999.00 l	Cov Haujlwm Siv Ua Haujlwm Voltage: 2.2MPA
Tus lej ntawm Chav Nqe: 0.01-999.99 Cov Nyiaj / L	Ex -} Ntawv pov thawj Lub cev muaj zog: 380V, 50Hz 4KW, 220V, 50Hz 4KW
Hluav Taws Xob Tag Nrho: 10 tus lej	Solenoid Valve: AC220V Ex Pov Thawj
Kub: -25℃~ +55 degree	Kev Nyab Xeeb Rov Qab Version Valve: 1.6MPA
Ua haujlwm tsim: 0 ~ 2.5mpa	Cov Huab Cua Nrawm Kuaj: 1.8MPA
Kev Ntsuas Kuaj: 2.0MPA	Kev Sib Txuas Lus: Rs485



Yam ua xoob



• Tib lub cev tsim roj - lpg dispensers

• POS - nyiaj sau npe

• hose thiab nozzle loj

• Cov Ncej Stainless Hlau Rau Cov Ntawv Thov Tshwj Xeeb



LPG Qhov Chaw



• LPG Flow Meter



LPG Flow Meter yog plaub {- Piston zoo hom, nrog ua hauv kev kos valve. Lub stainless hlau ua kom cov kev ua tau zoo ntawm kev ntws tawm. Kev tswj hwm nruj ua kom zoo kom haum kom nws nrog kev vam meej ntawm kev ntseeg siab, kev siv lub peev xwm zoo, thiab lub neej ntev siv.



Ntau tshaj plaws ua haujlwm siab	1.8MPA	Kho tau min. Qho loj hnyav	0.1%
Flow meter Rate	5-60l / min	Kev ua yog	±0.3%
Kev txo tus nqi ib lub kiv puag ncig	0.5L/r	Pheej thev siab	Tsawg dua los yog sib npaug rau 0.25%



• LPG Separator



Earlestar cua separator yog ib tug sib cais separator nrog check valve, lim, los ntawm pass cov khoom siv thiab txhim kho lub sijhawm siv.



Ua Haujlwm Siab: 2.5MPA	Lim Qhov Tsim: 0.08mm
Overflow siab: 4.0MPA



• LPG NOZZLE



LPG Nozzle yog nruab nrog ib lub dav hlau 360℃Inlet swivel uas ua rau cov kev siv yooj yim heev. Tus tooj liab sab hauv, txhuas thiab cov qauv hlau stainless hlau tiv thaiv lub nozzle dawb ntawm corrosion. Tus txheej txheem ua haujlwm zoo heev ua rau lub nozzle ua haujlwm ntev lub sijhawm lub sijhawm ntev yam tsis muaj kev xau dej.



Max. Kev khiav hauj lwm siab	350 PSL
Lpg paug ntawm dispnnect	4.3Ci
Qho so	-40 Qib rau 85℃(-400F rau 1850F)
Ntaub ntawv	Lub cev	Tooj dawb
	Sab hauv Cheebtsam	Nrig / Hlau
	Sab nraud Cheebtsam	Brass / Stainless Hlau



• LPG Breakaway



Xov: M27 * 1.5	Kev rub tawm ntau: 120bar
Khoom siv: Stainless hlau	Flow tus nqi: 5-50L / min



• LPG Solenoid Valve



Cov khoom siv valve loj yog cov khoom siv tshwj xeeb nrog cov anti anti - corrosion, tiv thaiv qhov kub tsawg. Tshwj xeeb stainless hlau sib nqus cov khoom tsis muaj xeb thiab ua rau muaj kev ua haujlwm tseem ceeb dua Magnetism. Cov chav kawm F Voj nrog rwb thaiv tsev zoo.



Inch: 20mm 3/4 "

Anti {-} Cov chav kawm tawg: Exdⅱt



• LPG Manometer



Raug: ± 2.5%

Siab: 0 ~ 4mpa



• Lpg hose



Puas tsim tau zoo roj hmab LPG hose, qhov loj me thiab cov xim raws li cov neeg siv khoom thov. Qhov no yog qhov zoo tshaj plaws ntawm kev kub siab lpg hose hauv Suav teb nqa kev ua haujlwm zoo dua. Cov tawg pov thawj cov ntaub ntawv pov thawj tam sim no Hose yog hloov tau yooj yim thiab yooj yim daws tau. Tag nrho cov khoom lag luam speces zoo txo ​​tus nqi saib xyuas rau cov neeg siv khoom.



• LPG Pl Concialial Valve



Qauv: LPG-1, LPG-2	Qhov txawv Siab: 0.3bar
Ua Haujlwm Siab: 1.8MPA	Flow tus nqi: 50-60l / min
